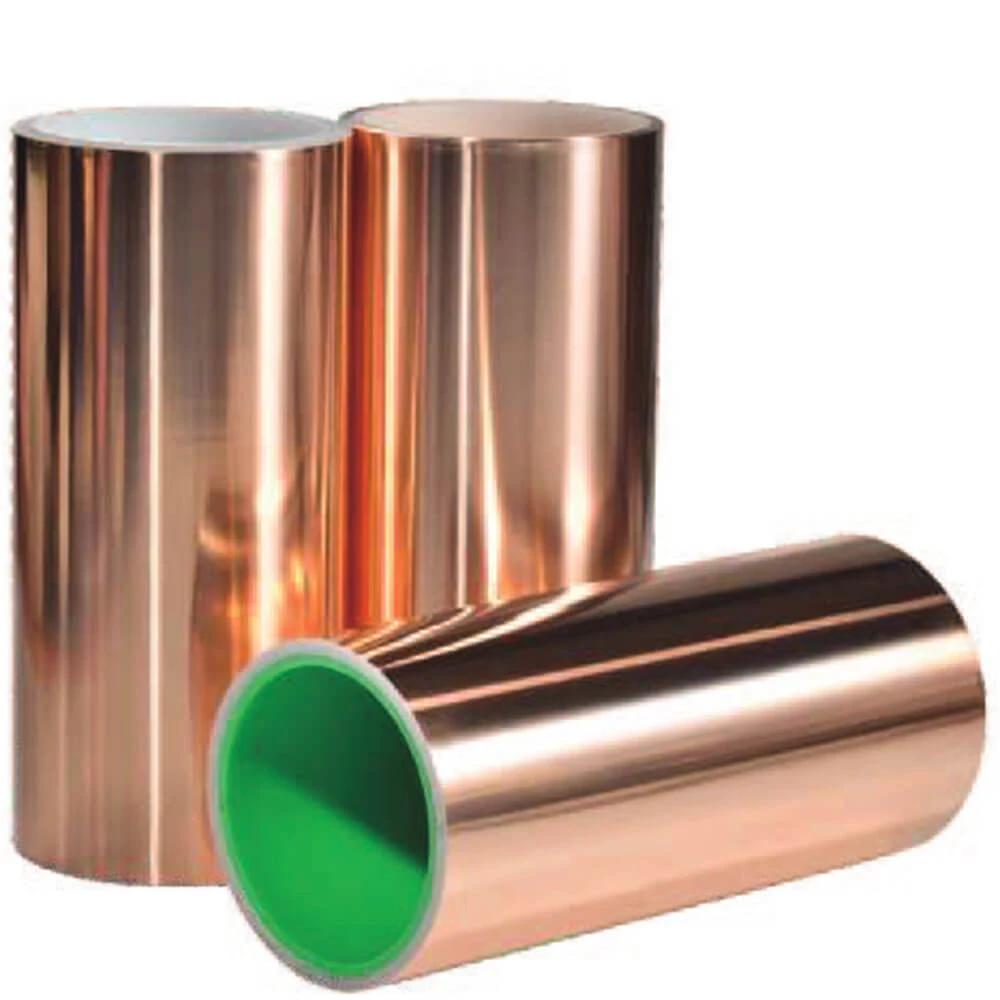

Copper foil tape is a type of adhesive tape that has a thin layer of copper foil on one side and pressure sensitive adhesive on the other side. It is commonly used in electronics, electrical, and electromagnetic shielding applications. Copper foil tape can be divided into single and double conductive copper foil. Single conductive copper foil tape refers to one side having an overlying non-conductive adhesive surface, and bare on the other side, so it can conduct electricity; so it is called single-sided conductive copper foil. Double-sided conductive copper foil refers to copper foil that also has an adhesive coating, but this adhesive coating is also conductive, so it is called double-sided conductive copper foil.
The copper foil used in this tape provides excellent conductivity and is highly resistant to corrosion. It is often thin and flexible, allowing it to conform to irregular surfaces easily. The adhesive side of the tape allows it to be easily bond to various surfaces.
Single conductive copper foil tape is also used for repairing damaged traces on circuit boards, creating electrical connections, and providing grounding pathways. It can be used in electronics manufacturing, electrical repairs, and DIY projects.
Copper foil tape is available in different widths, lengths, and thicknesses to suit different applications. It can be easily cut and shaped to fit specific needs. When applying the tape, it is important to ensure that the surface is clean and free from dust, oil, or other contaminants to achieve a strong and durable bond.
Feature:
- High electrical conductivity and shielding effectiveness
- Excellent dimensional stability and easy to die cut
- Excellent temperature resistance and shading resistance
- High strength, suit for various surfaces

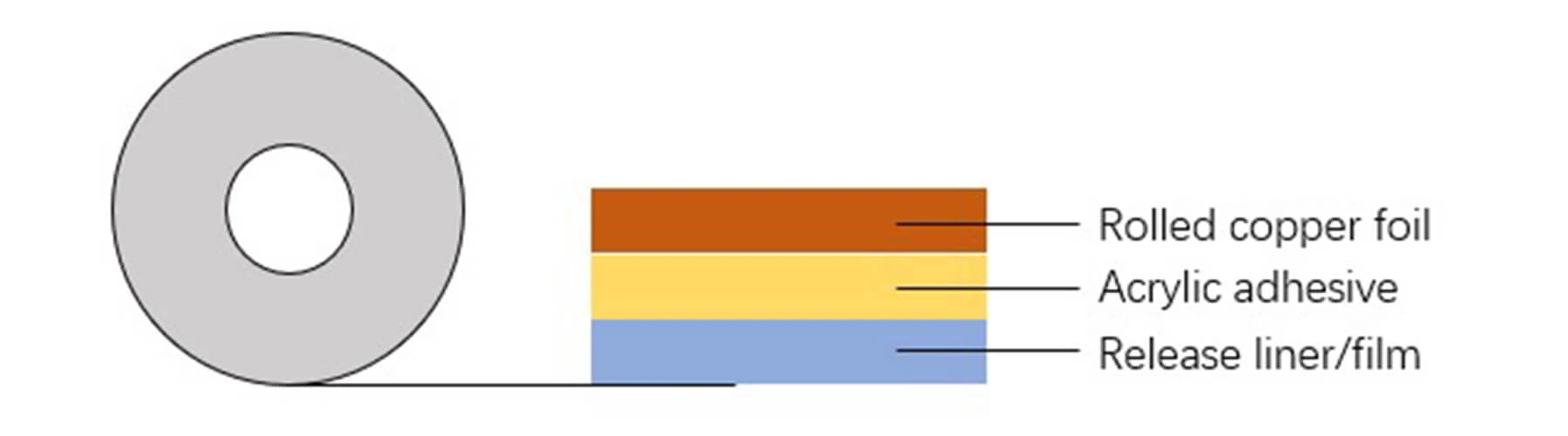

Structure:
Application:
It can be used in various types of transformers, mobile phones, computers, PDA, PDP, LCD monitors, printers and other domestic consumer products.
| Product Code | Carrier Thickness (mm) | Tape Thickness (mm) | Peel Strength (N/25mm) | Characteristics |
| TY-0050CUS | 0.018 | 0.050 | ≥12 | |
| TY-0085CUS | 0.050 | 0.085 | ≥12 | |
| TY-0100CUS | 0.045 | 0.100 | ≥12 | |
| TY-0125CUS | 0.075 | 0.125 | ≥15 | |
| TY-0150CUS | 0.100 | 0.150 | ≥15 |
