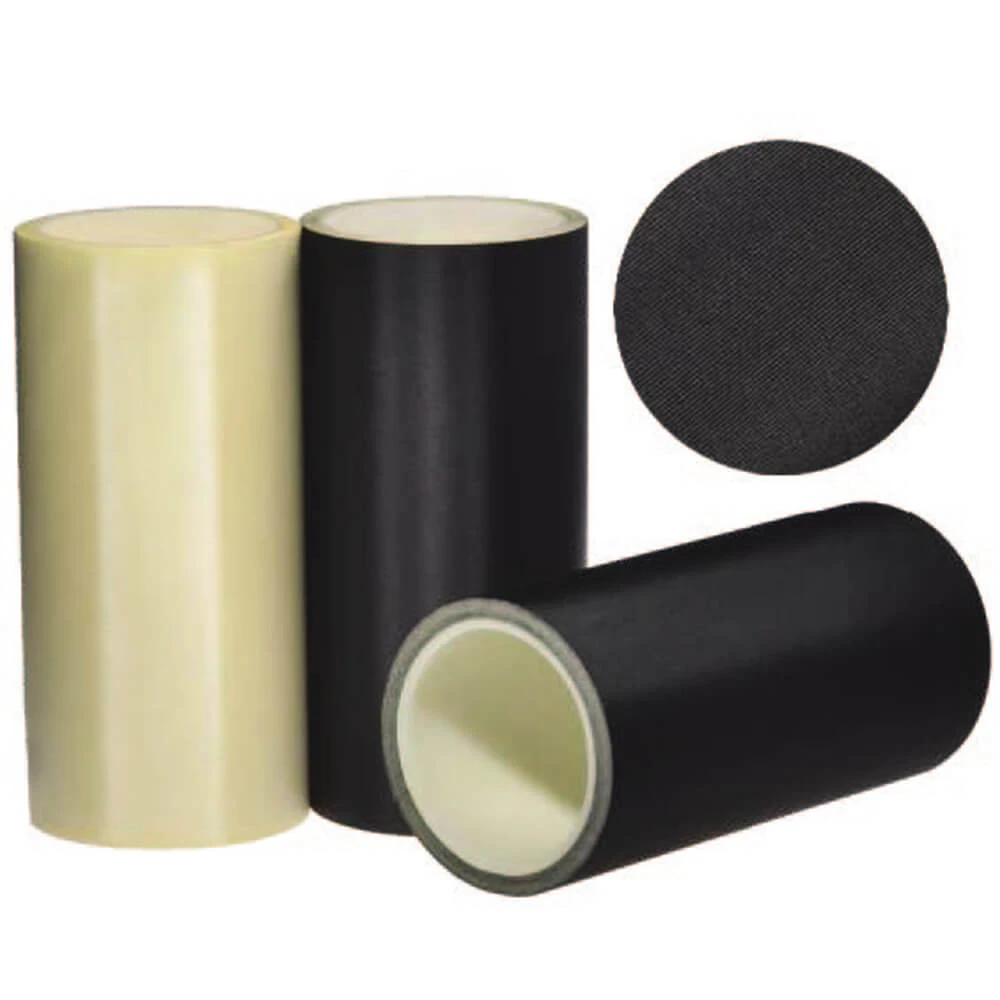

Acetate cloth tape, also known as acetate fabric tape, is a type of insulating tape that features a backing made from acetate fabric coated with acrylic adhesive. Acetate is a synthetic material derived from cellulose, offering a combination of strength, flexibility, and tear resistance. The acetate cloth backing of this tape provides flexibility and conformability, allowing it to conform to irregular surfaces and wrap around objects with ease.
Acetate cloth tape is known for its excellent electrical insulation properties. It is commonly used in electrical applications to insulate and protect wires, cables, and other components from electrical currents. Excellent high temperature resistance makes it suitable for applications where heat resistance is required, such as in motors, transformers, and other electrical equipment.
Acetate cloth adhesive is a good choice for wire harnessing, coil wrapping, insulation, bundling, and other applications.
Feature:
- Color: black or white
- Excellent high temperature resistance
- Good insulation
- Strong adhesion and easy to tear
- Excellent flexibility to a bumpy surface

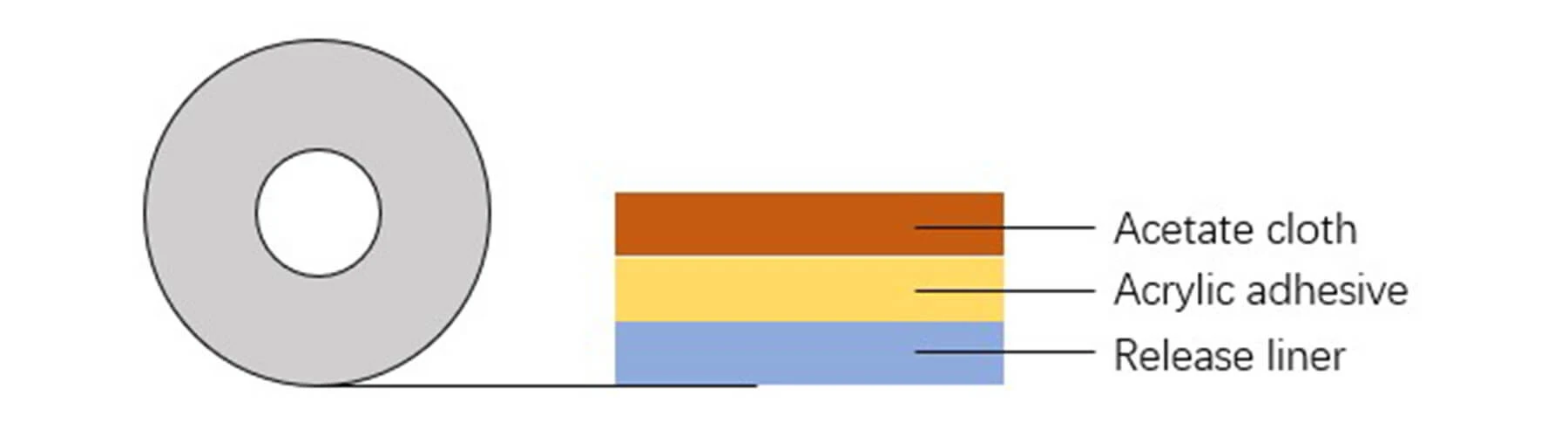

Structure:
Application:
- Bunding the wire harnesses
- Electrical insulation and fixing electronic components
- Used for insulation fixed on transformer and electronic appliances
| Product Code | Carrier Thickness (mm) | Tape Thickness (mm) | Peel Strength (N/25mm) | Characteristics |
| TY-1080C | 0.050 | 0.080 | ＞10 | |
| TY-1120C | 0.080 | 0.120 | ＞12 | |
| TY-1220C | 0.180 | 0.220 | ＞14 | |
| TY-1080CB | 0.050 | 0.080 | ＞10 | |
| TY-1120CB | 0.080 | 0.120 | ＞12 | |
| TY-1220CB | 0.180 | 0.220 | ＞14 |
