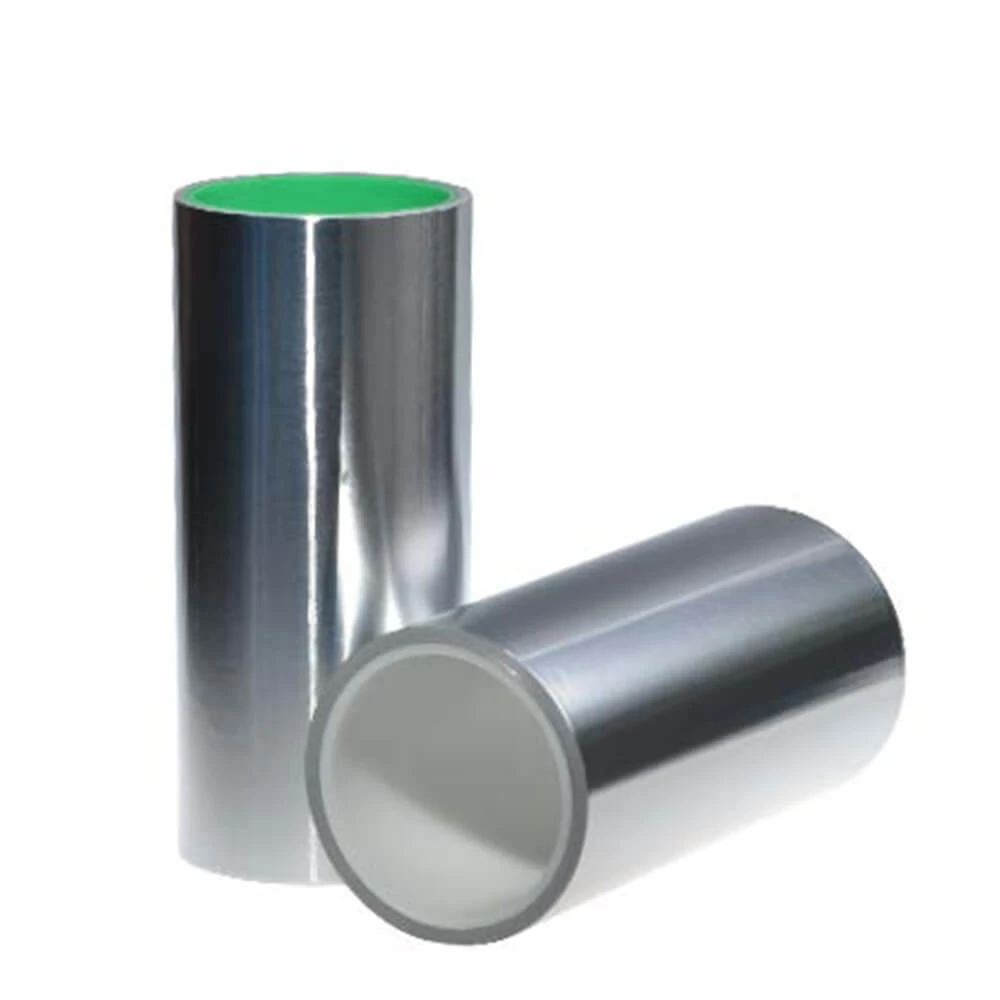

Aluminum foil tape, especially the double conductive variety, is a versatile adhesive tape with a layer of aluminum foil as its backing material. Here’s a breakdown of its features and common uses:
- Backing Material: The backing material is typically a thin layer of aluminum foil, which provides excellent heat and electrical conductivity. This makes it suitable for applications where conductivity is required, such as grounding and shielding in electronics.
- Adhesive: Aluminum foil tape usually has a conductive adhesive on both sides, allowing it to adhere well to both smooth and irregular surfaces. The adhesive is often acrylic-based and offers good adhesion even at high temperatures.
- Conductivity: As the name suggests, double conductive aluminum foil tape conducts electricity on both sides, making it useful for applications where electrical grounding or shielding is necessary. It can be used to seal joints and seams in HVAC systems, for EMI/RFI shielding in electronics, and for static discharge in sensitive environments.
- Heat Resistance: Aluminum foil tape is typically heat-resistant, allowing it to withstand high temperatures without degradation. This makes it suitable for applications where heat insulation or heat reflection is required, such as in automotive engine compartments or HVAC ductwork.
- Sealing and Insulation: Double conductive aluminum foil tape is commonly used for sealing seams and joints in ductwork, pipes, and insulation panels to prevent air leakage and improve energy efficiency. It can also be used for insulation purposes, reflecting heat away from surfaces or containing heat within a specific area.
Overall, double conductive aluminum foil tape is a valuable tool for electrical, thermal, and mechanical applications where conductivity, heat resistance, and durability are essential.
Feature:
- Good stability, can effectively improve and deal with die cutting and bonding;
- The high adhesion adhesive provides excellent adhesion to a variety of surfaces;
- Good resistance to temperature, conductive and shielding properties.

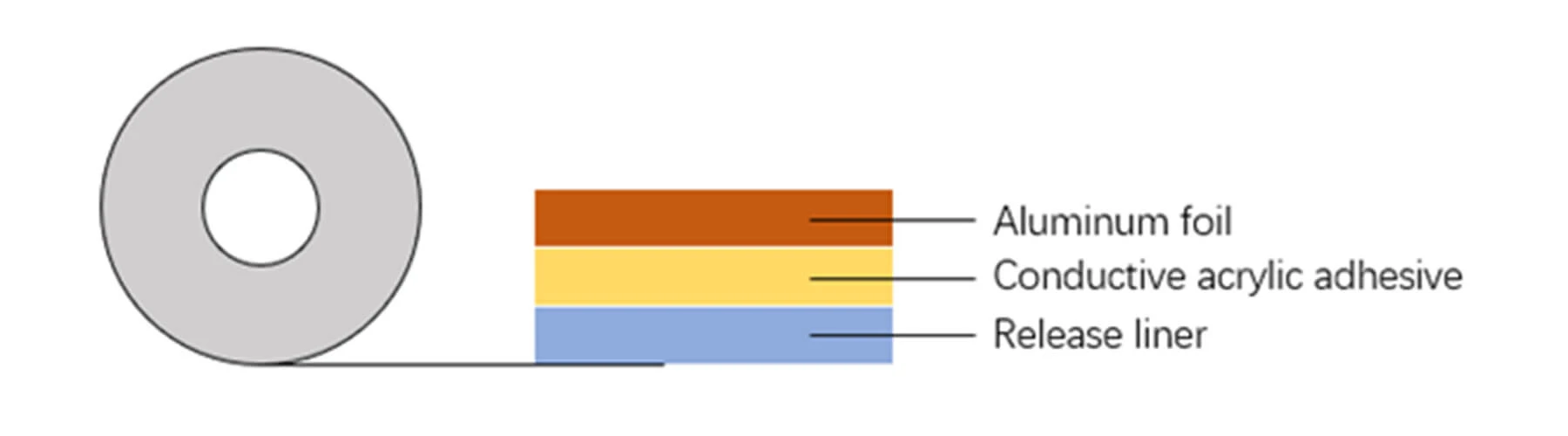

Structure:
Application:
for PAD, PDP, LCD display, notebook glue, copier, mobile phone, cable assembly, electromagnetic shielding of components such as communication equipment.
| Product Code | Substrate Thickness (mm) | Tape Thickness (mm) | Peel Strength (kg/25mm) | Initial Viscosity (Ball Tack) | Long-term Temperature Resistance℃ | Short-term Temperature Resistance℃ | Surface Resistance |
| TYAD-007010 | 0.007 | 0.010 | ≥0.80 | ≥1 | 80 | 120 | ≤50mΩ |
| TYAD-015040 | 0.015 | 0.040 | ≥1.20 | ≥1 | 80 | 120 | |
| TYAD-035070 | 0.035 | 0.070 | ≥1.20 | ≥2 | 80 | 120 | |
| TY-0100150 | 0.10 | 0.150 | ≥1.50 | ≥2 | 80 | 120 |
